Fire Department Connections

Inlet connection Flush Type

Used to supplement fire protection water supply

6010-6042TWO-WAY CLAPPER INLET  Data sheet

• An Auxiliary Inlet Connection with 500G.P.M. minimum inlet capacity
• Cast brass body, double clapper inlets, brass plate, adaptersand plugs with chain
• Optional Finish: Polished Brass, Polished Chrome



6115-6117THREE-WAY CLAPPER INLET  Data sheet

• An Auxiliary Inlet Connection with 750 G.P.M. minimum inlet capacity.
• Cast brass, three way body with drop clappers, 6" back outlet, Bottom or top connections brass plate, adapters and plugs with chains
• Optional Finish: Polished Brass, Polished Chrome



6230 - 6234 FOUR-WAY CLAPPER INLET  Data sheet

• An Auxiliary Inlet Connection with 1000 G.P.M. minimum inlet capacity.
• Cast brass body, four-way inlet body with drop clappers,Brass plate, adapters and plugs with chains.
• Finish: Polished Brass
• Optional Finish: Polished Chrome



Inlet connection Exposed Type

Single clapper two way inlets (An exposed auxiliary inlet connection with 500 G.P.MInlet capacity to supplement fire protection water supply)

6405  Data sheet

• Cast brass body only with single swing clapper and pin lug swivel Back outlet connection
• Branding: "Auto Spkr."
• Optional Finish: Polished Brass, Rough chrome , Polished Chrome
• UL Listed,FM Approved



6407  Data sheet

• Cast brass body only with single swing clapper and pin lug swivel Angle outlet connection
• Branding: "Auto Spkr."
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved

Double clapper two way inlets (An exposed auxiliary inlet connection with 500 G.P.MInlet capacity to supplement fire protection water supply)

6410-6415  Data sheet

• Cast brass two-way inlet body only with double drop clappers and pin lug swivelsBack outlet connection
• Branding: "Standpipe", "Auto Spkr."
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved

6420-6425  Data sheet

• Cast brass two-way inlet body only with double drop clappers and pin lug swivels Angle outlet connection
• Branding: "Standpipe", "Auto Spkr "
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved

Double clapper two way inlets with plate and plugs (An exposed auxiliary inlet connection with 500 G.P.M Inlet capacity to supplement fire protection water supply)

6430-6435  Data sheet

• Cast brass two-way inlet bodywith drop clappers and pin lug swivels; with plugs and chains;cast brass round wall plate
• Branding: "Standpipe", "Auto Spkr."
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved

6440-6443  Data sheet

• Cast brass two-way inlet bodywith drop clappers and pin lug swivels; with plugs and chains;cast brass round wall plate furnished with Sillcock flange plate withSillcock
• Branding: "Standpipe", "Auto Spkr "
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved



Inlet connection Free Standing Type

Double clapper two way inlets (500 G.P.M. minimum inlet capacity auxiliary inlet connection)

6510  Data sheet

• Cast brass bottom outletbody with double clappers, outlet and inlet sizes asselected by figure number, 18" high brass seamlesstubing; brass branded plate; cast brass plugs andChains.
• Branding: "Standpipe", "Auto Spkr."
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved



Outlet connection Free Standing Type

6510  Data sheet

• Cast Brass bottom inlet body with 18" high brass seamlessTubing; brass branded plate; cast brass caps and chains
• Branding: "Hydrant"
• Finish: Cast Brass
• Optional Finish: Polished Brass Rough chrome , Polished Chrome
• UL Listed,FM Approved



Outlet Connection –Flush type

6610-6613  Data sheet

• Two way Hydrant
• Cast brass body with brass wall Plate; outlet adapters; caps and chains.
• Branding: "Hydrant"
• Finish: Cast Brass
• Optional Finish: Polished Brass, Polished Chrome
• UL Listed,FM Approved



6615  Data sheet

• Three way Hydrant
• Cast brass body with brass wall Plate; outlet adapters; caps and chains.
• Branding: "Hydrant"
• Finish: Cast Brass
• Optional Finish: Polished Brass, Polished Chrome
• UL Listed,FM Approved

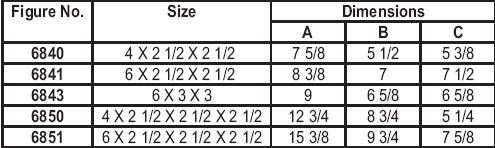

Roof Manifold bodies

68400-6843  Data sheet
